01 / PLATFORM
MOTION. LOGIC. SAFETY. HMI.
One controller. Built for the factory floor.
The four things every machine needs — in one industrial-grade module. Traditional architecture means a PLC from one vendor, a motion controller from another, a safety relay from a third, and an HMI from a fourth. The Control Block delivers all four in a single precisely engineered platform.
01/Motion
6+4 axis built-in robot controller — 6 coordinated robotic axes plus 4 independent auxiliary axes. Absolute encoders, integrated brakes, single-cable connections. Teach, jog, and program from one interface.
02/Logic
8 programmable logic routines, simple to build in a spreadsheet-style editor — online or offline. 24 onboard digital I/O, expandable to 2,048 via Remote I/O. 150 data channels, 54 safety I/O.
03/Safety
PLe / Cat 4 / SIL3 rated. Safety I/O, safety-rated outputs, and hardware-enforced speed limiting built in.
04/HMI
Industrial touchscreen interface. Every axis, every I/O point, every recipe — visible and editable from one screen.
02 / STUDIO
Program offline.
Support remotely.
AutoBlocks Studio brings your machine to your desk. Write, simulate, and debug AutoCode programs without being physically present at the machine — then push updates over a secure connection when you’re ready.
USE 02
Remote Support & Diagnostics
Connect to any machine in the field. View live I/O, jog axes, monitor faults — from anywhere.
USE 01
Offline Programming
Build and test full motion programs on your laptop before touching the machine.
USE 03
Air-Gap Ready
No persistent cloud connection required. Studio works over local LAN or VPN. ITAR-compliant deployments supported.

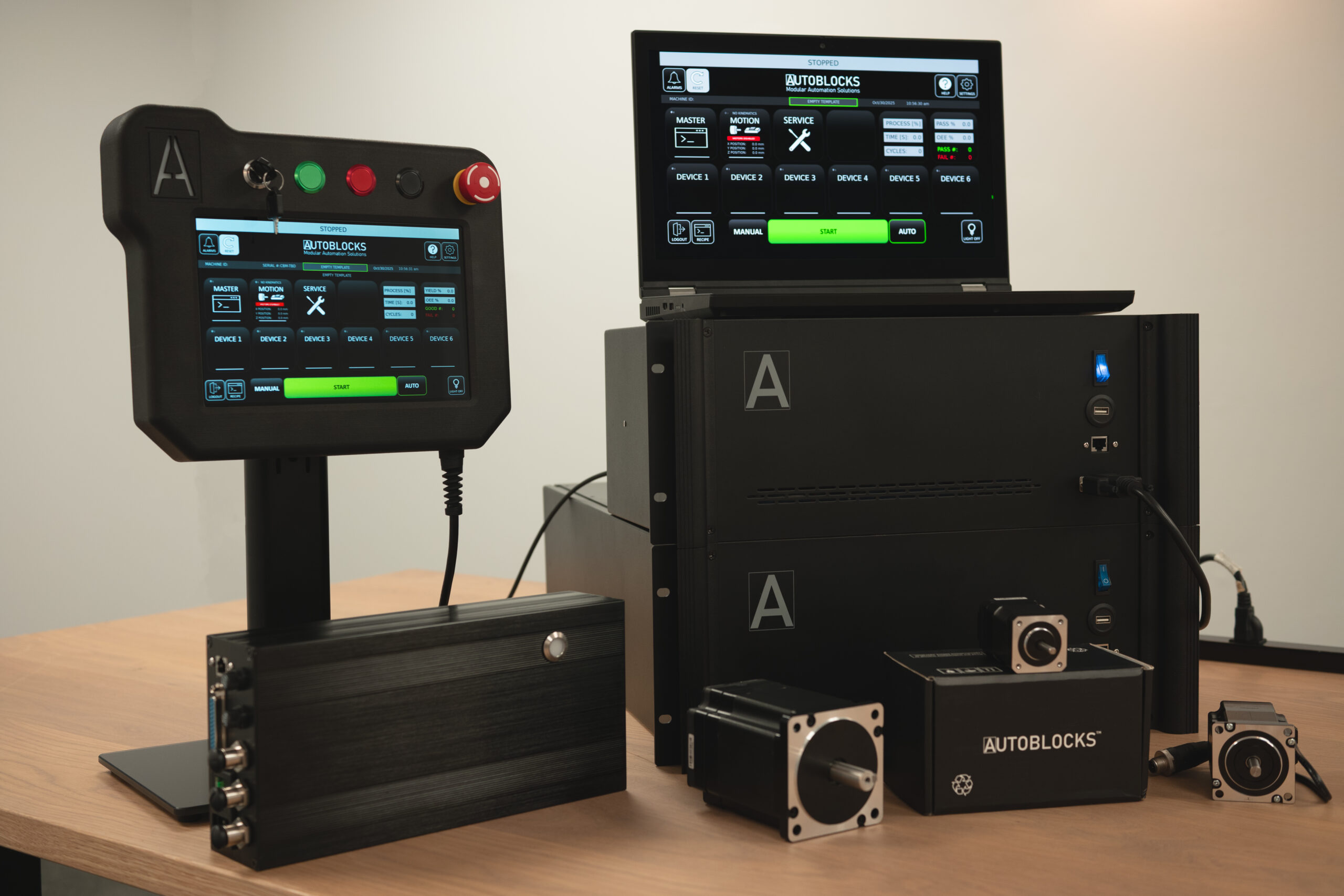

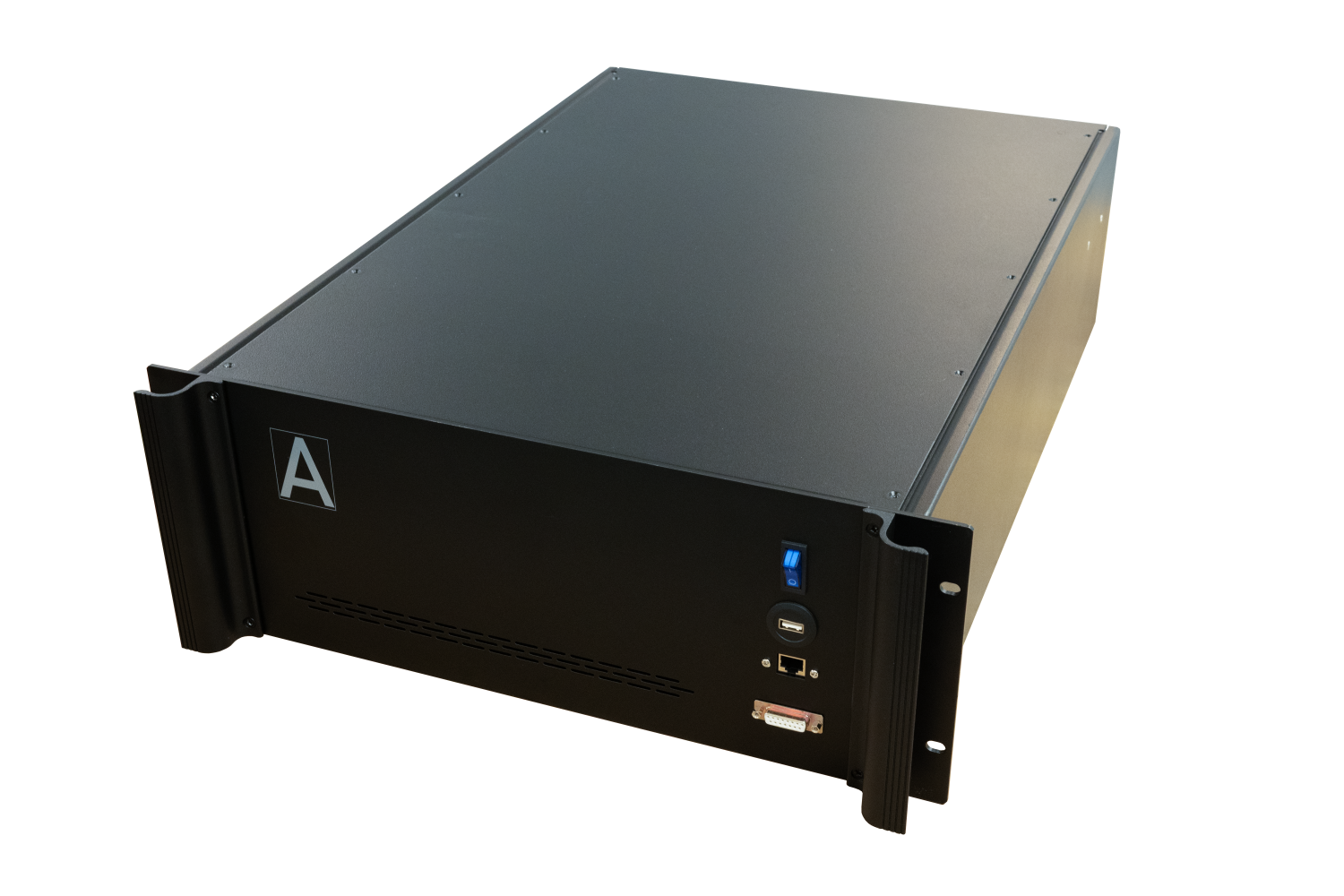

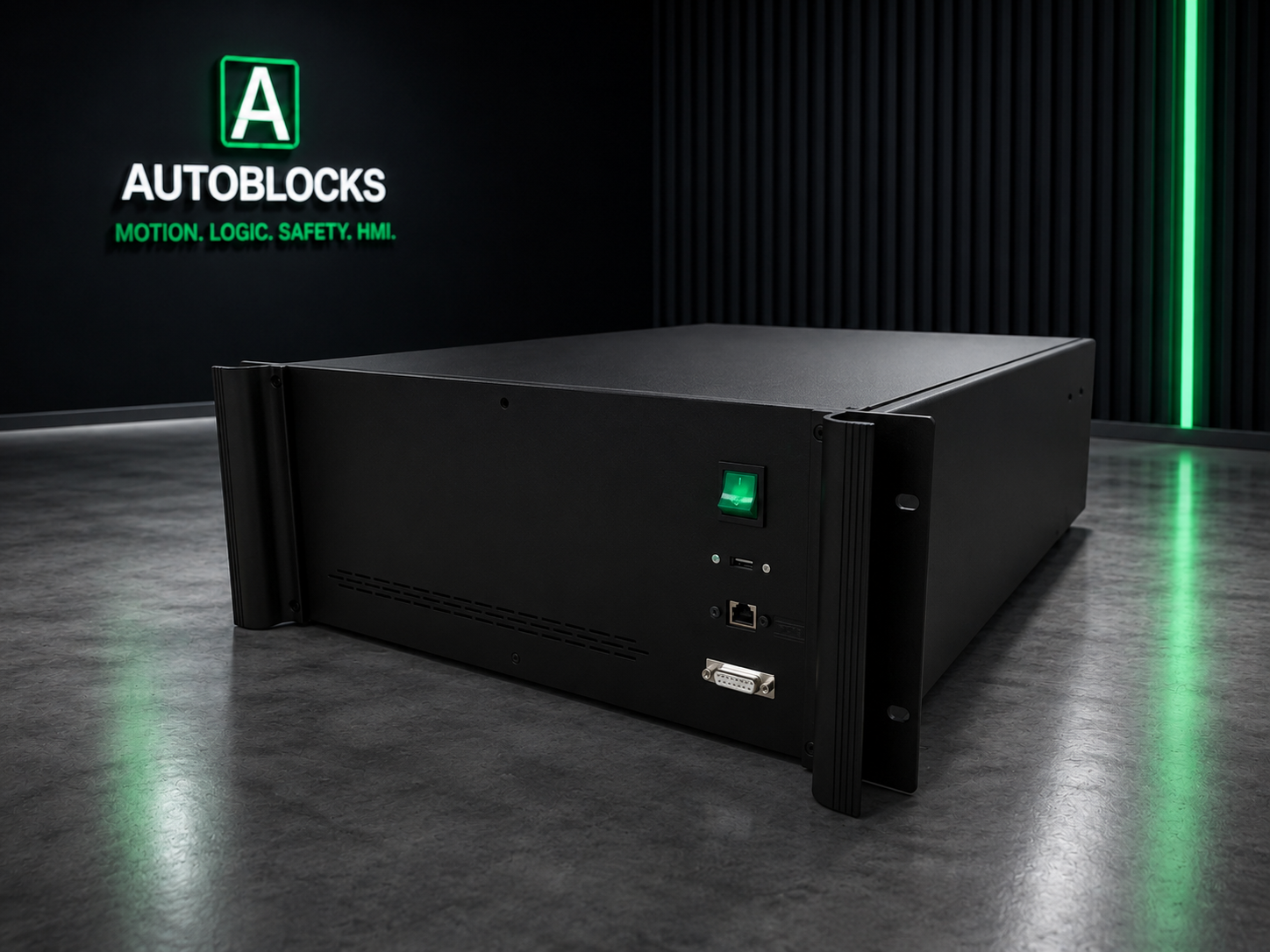

CONTROL BLOCK
The hardware heart of every AutoBlocks system for MOTION, LOGIC, SAFETY.

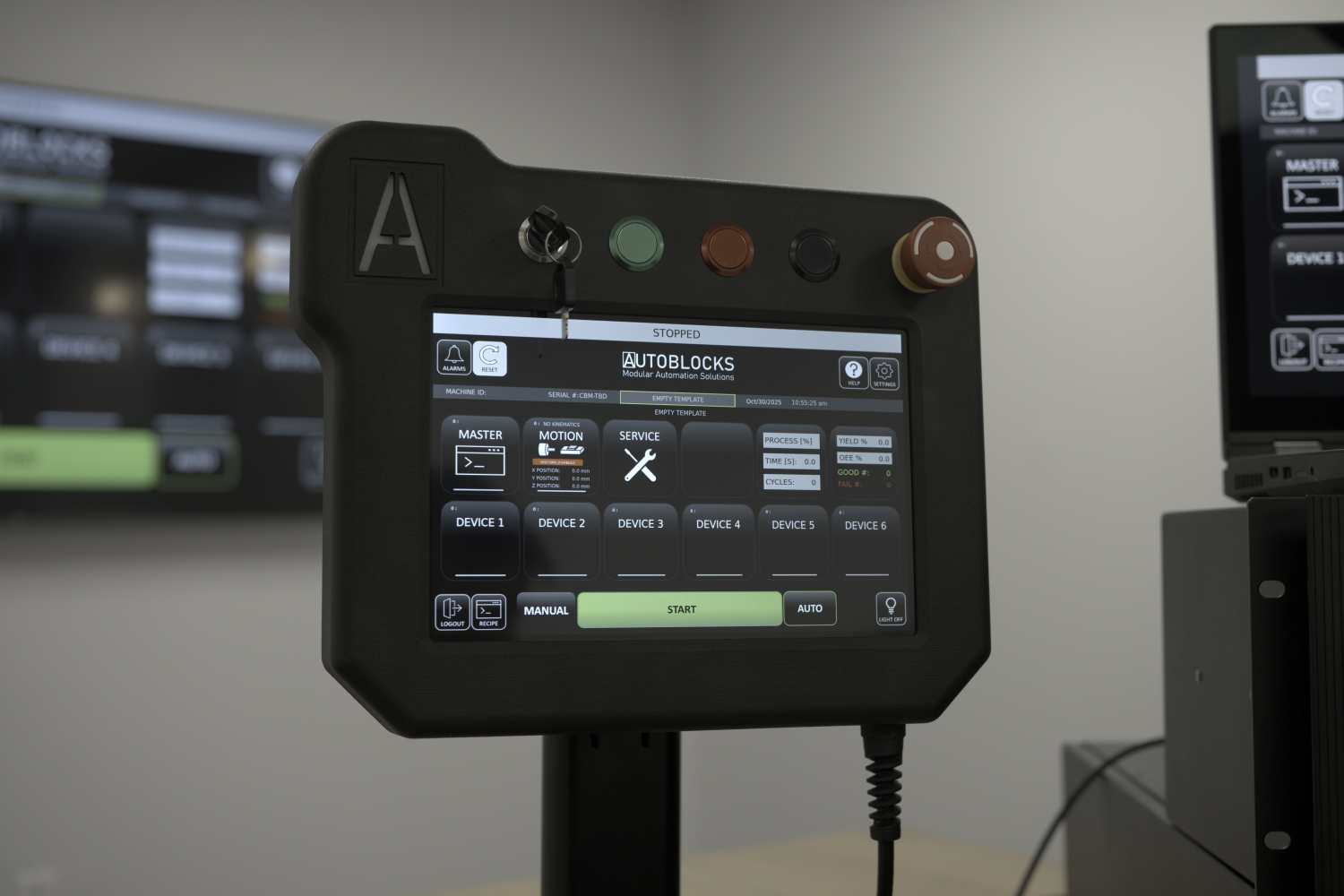

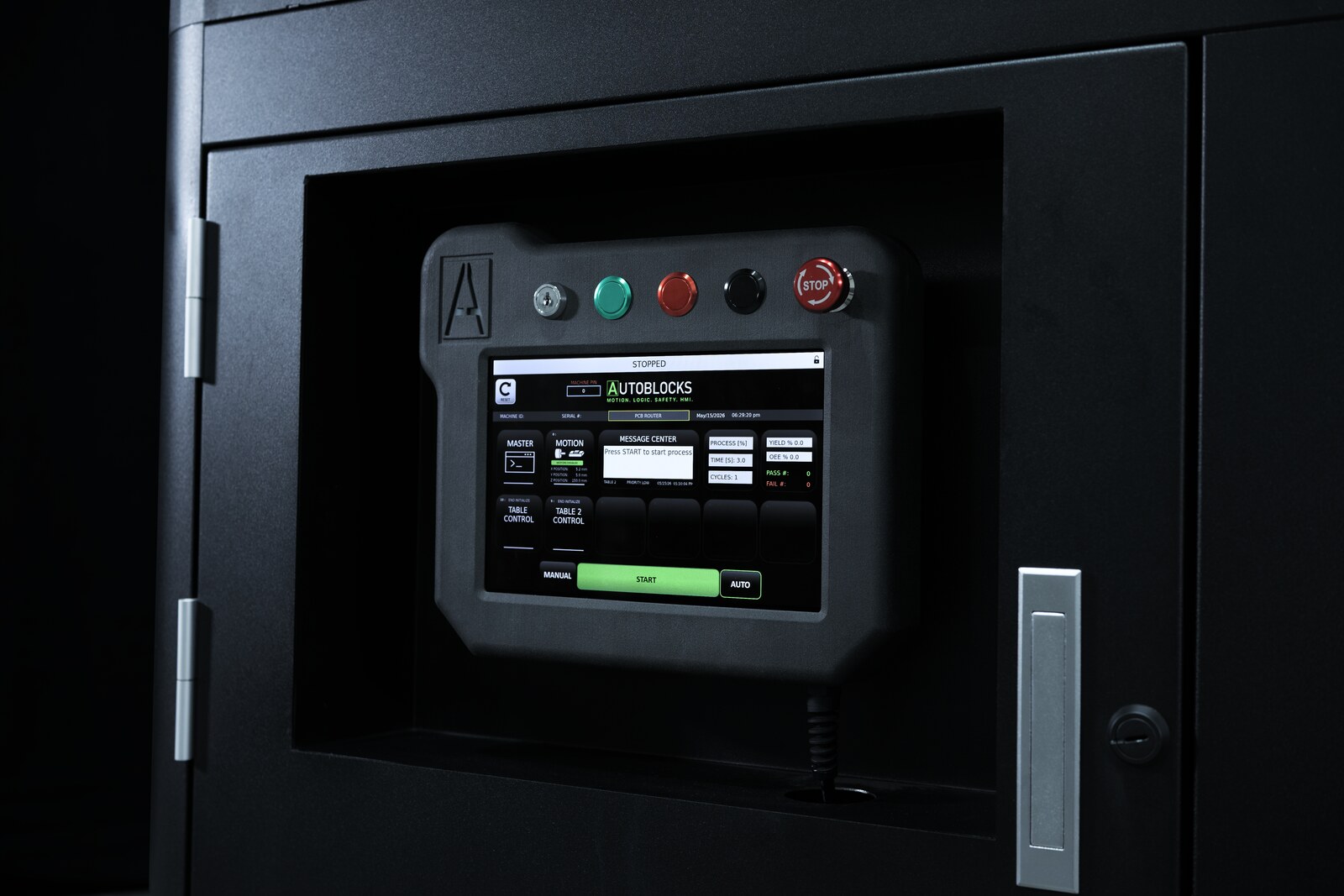

PENDANT
Autoblocks web interface for every machine.

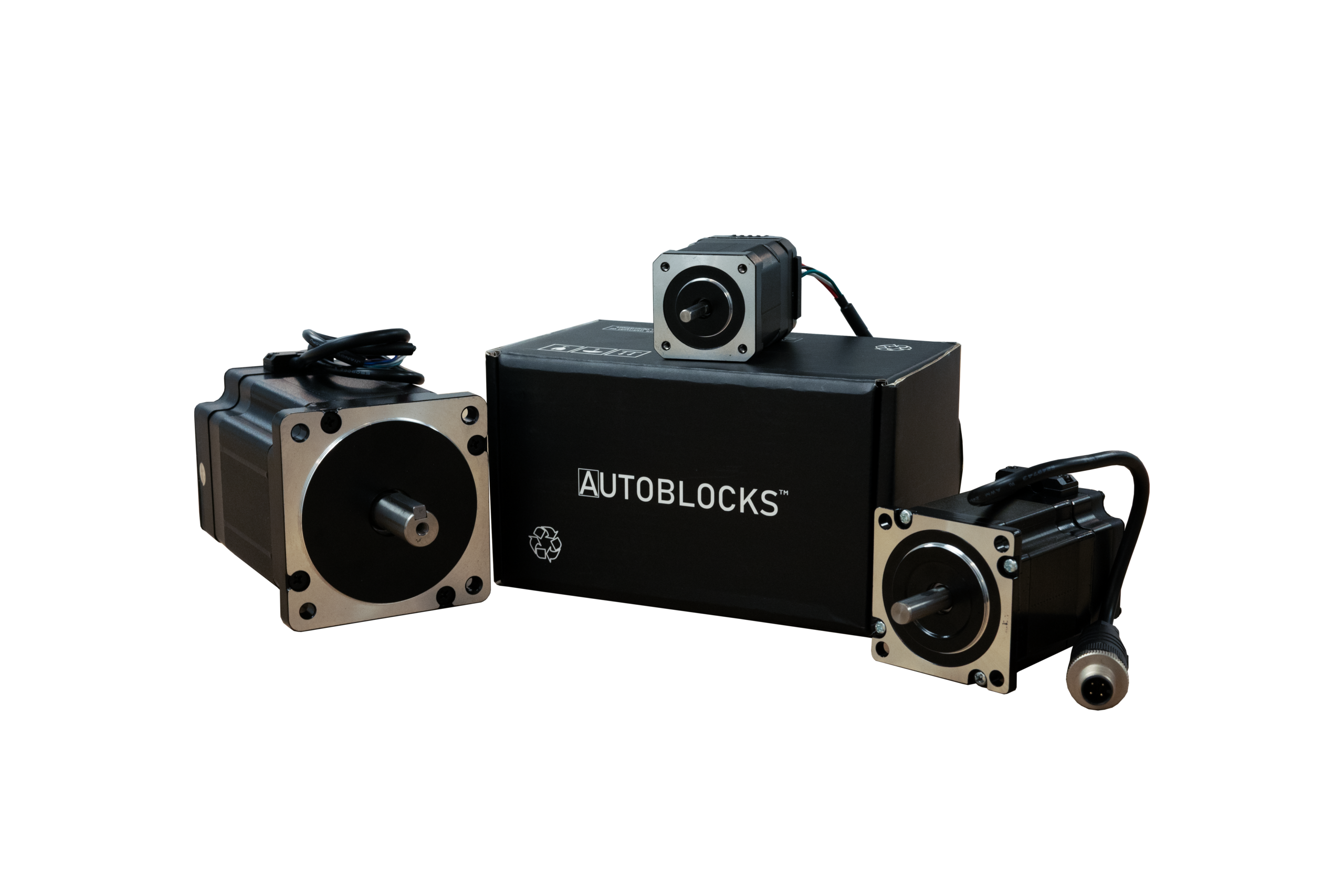

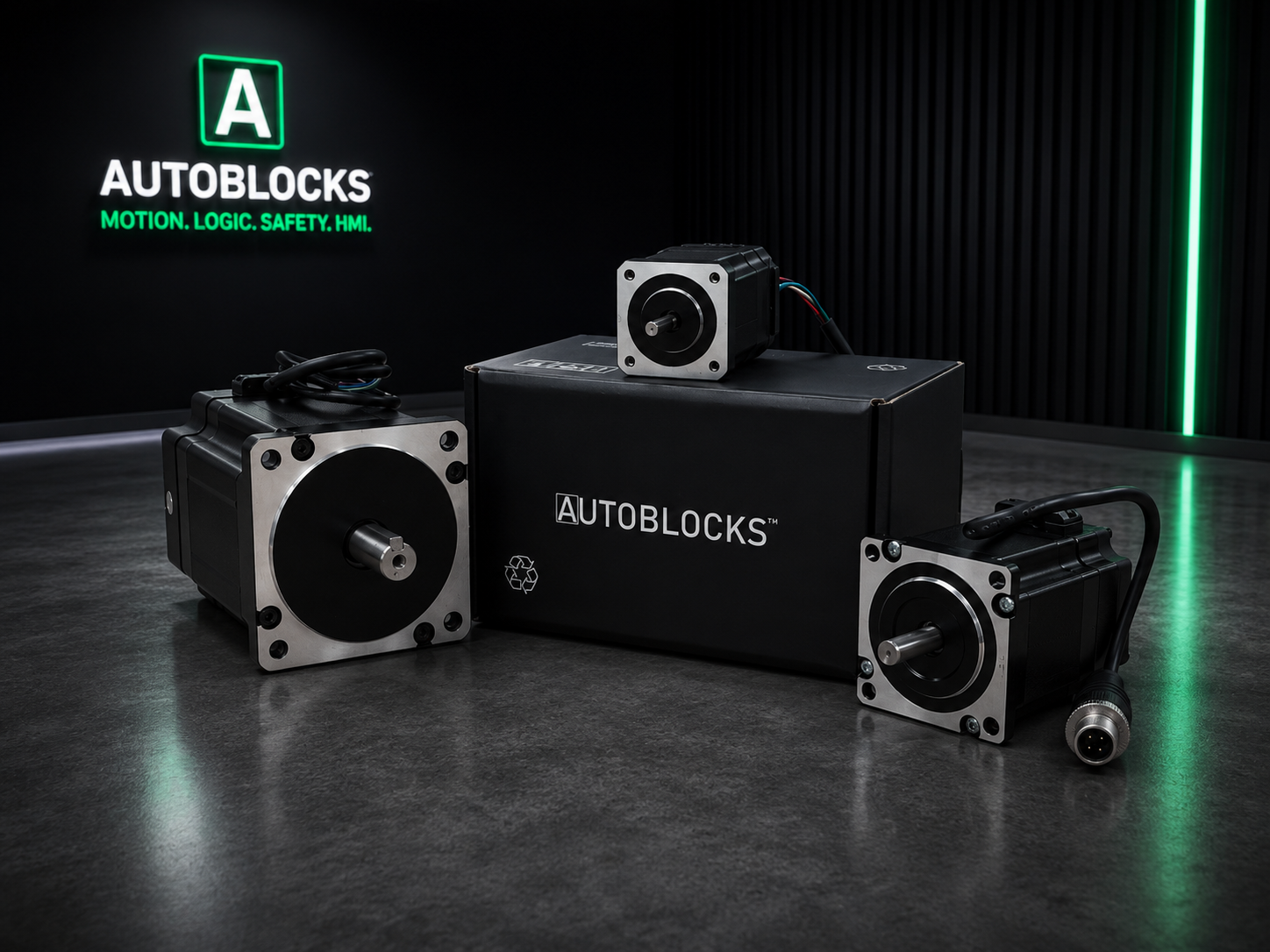

ABSOLUTE MOTORS
Absolute distributed motion with single cable setup.

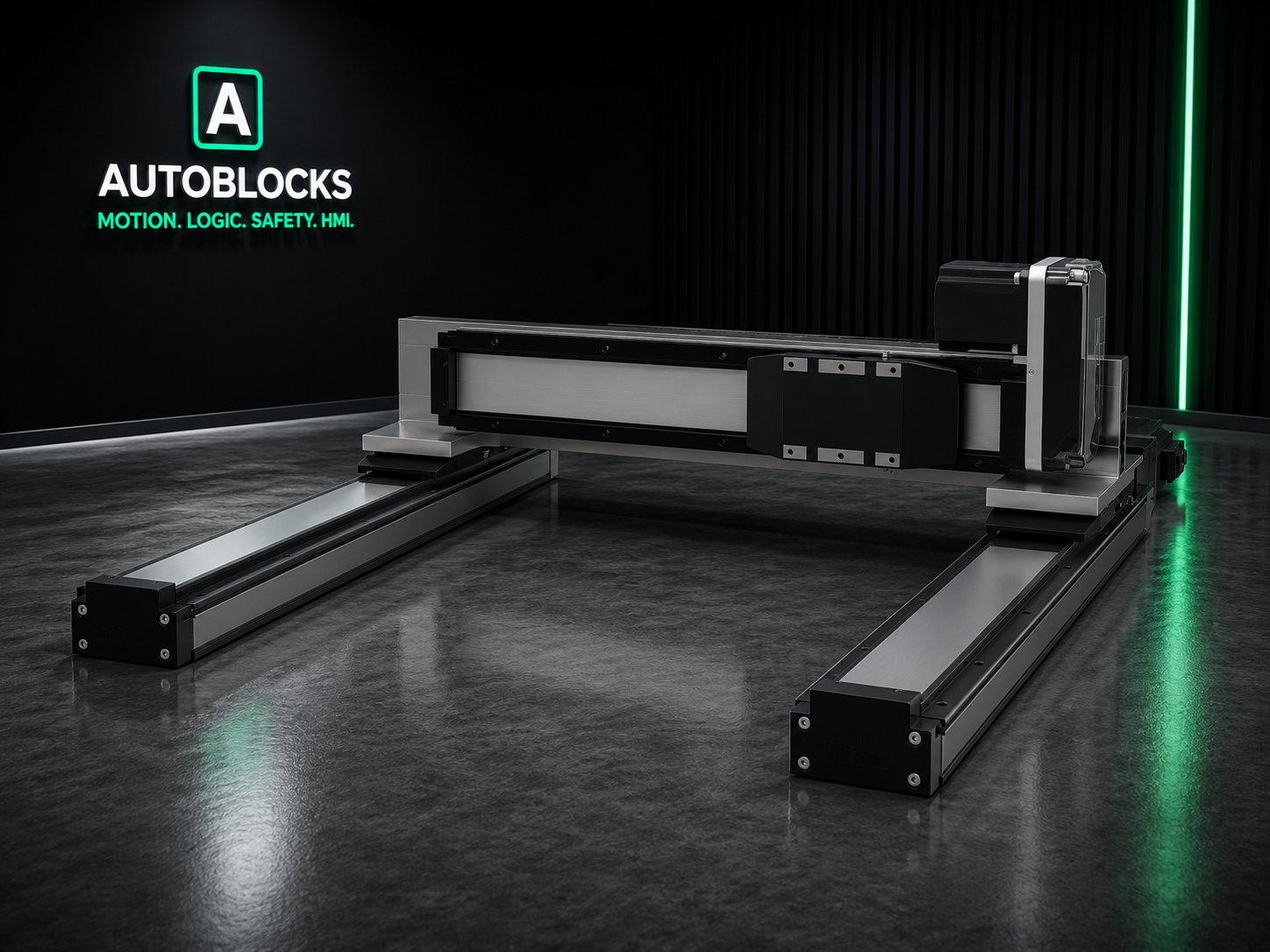

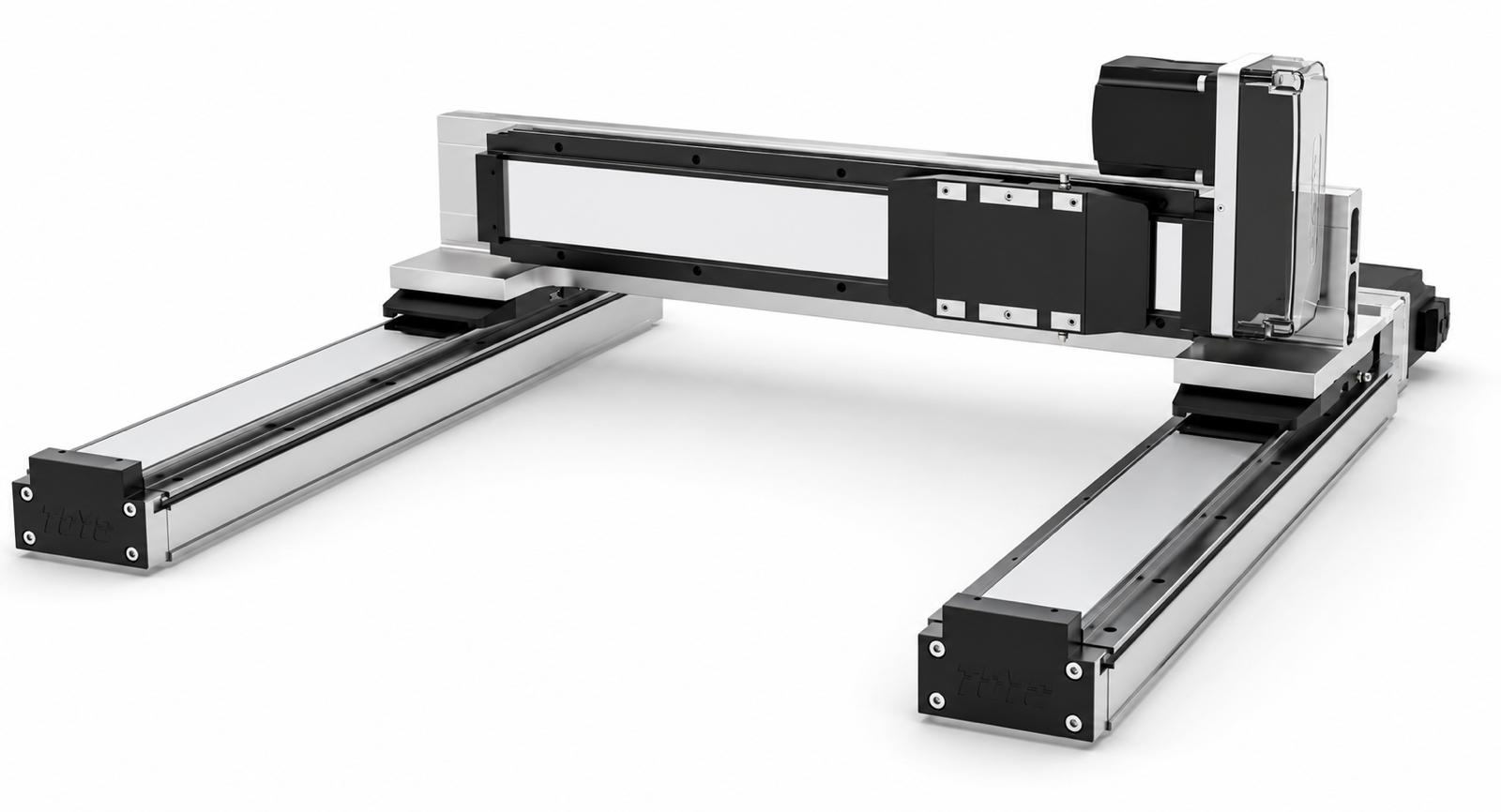

PRECISION GANTRIES
Pre-engineered single- and multi-axis motion, ready to deploy.

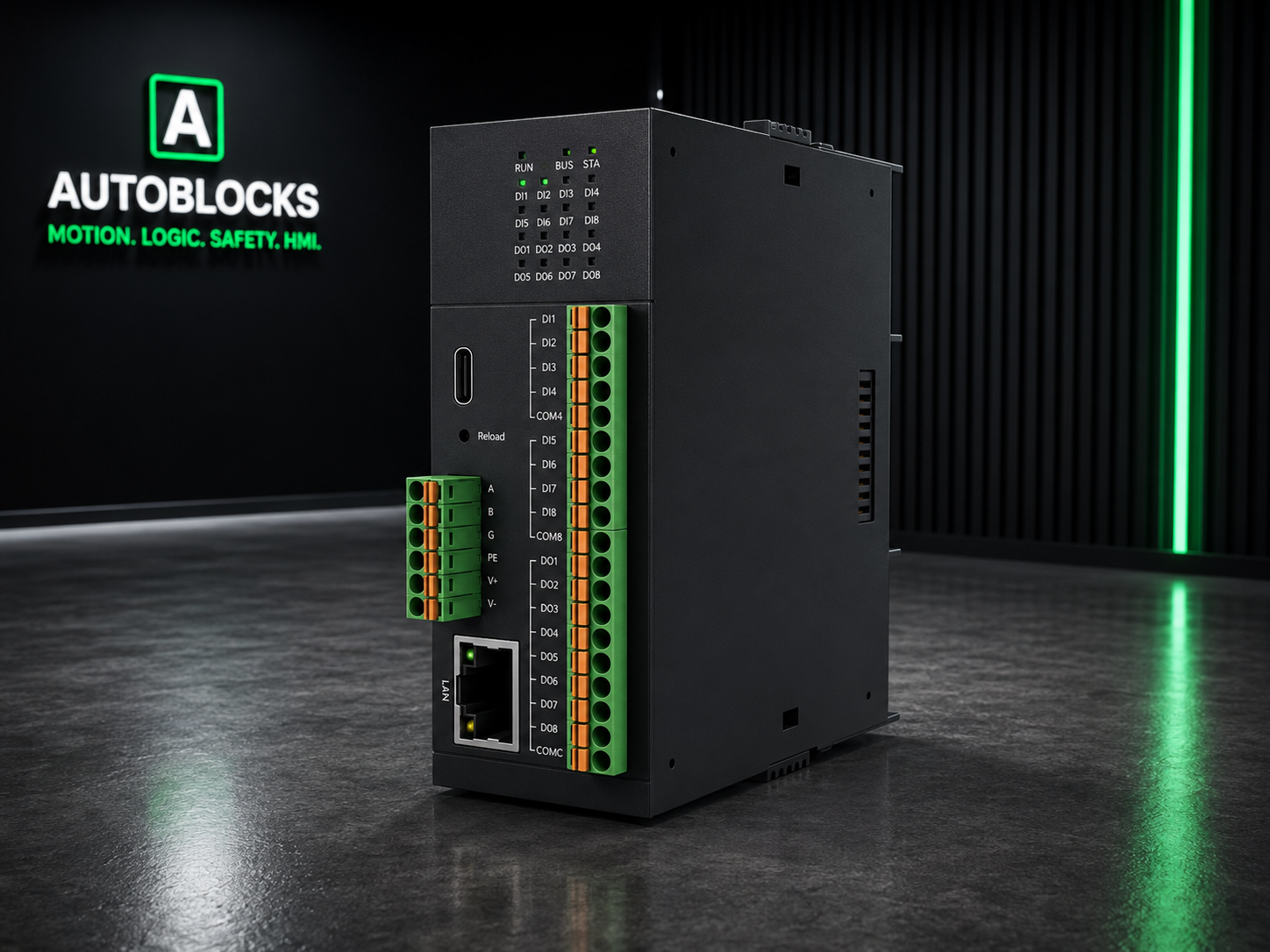

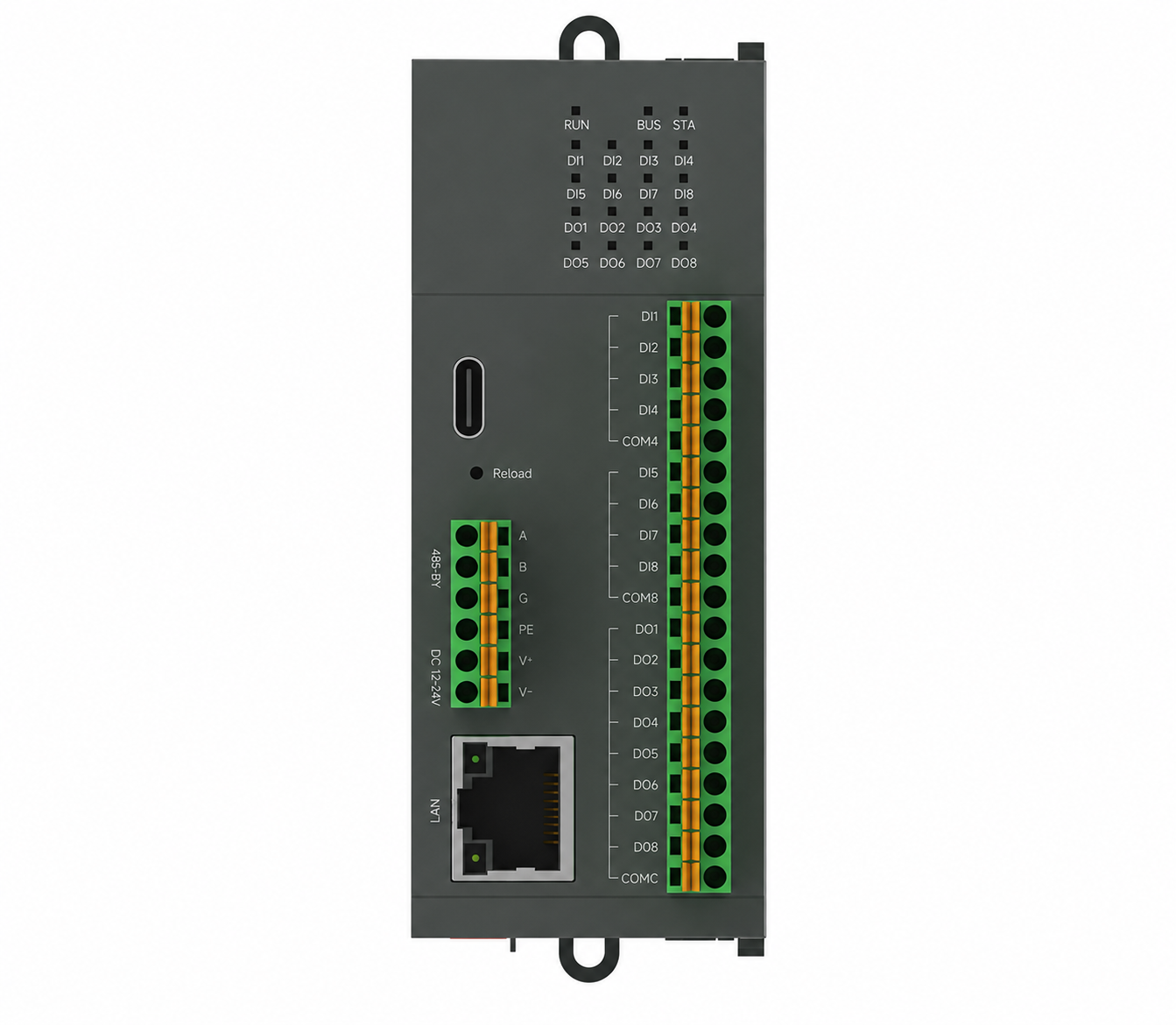

REMOTE I/O
Bus-fed Control Block expansion. Drop in wherever you need points.
SOFTWARE
AutoCode and Studio. Program, simulate, and support from anywhere.
30→5
SETUP TIME (MINUTES)
Recipe changeover, 3-axis gantry at Fancort, Q1 2026
PLe
CAT 4 / SIL3 · SAFETY ON EVERY MACHINE
0
CLOUD DEPENDENCIES. AIR-GAP READY.
03 / HOW WE STACK UP
vs. the cloud-locked
alternatives.
| CLOUD PLATFORMS | AUTOBLOCKS | |
|---|---|---|
| Internet required to run programs | ✕ YES | ✓ NO |
| Works with any robot brand | ✕ NO | ✓ YES |
| ITAR / air-gapped sites | ✕ NO | ✓ YES |
| Field debugging without cloud | ✕ NO | ✓ YES |
| Human-auditable program code | ✕ NO | ✓ YES (AutoCode) |
04 / BUILT ON AUTOBLOCKS
CASE STUDY — RDO INDUCTION
Induction Brazing Gantry System
3× throughput. 75% less labor. And the customer keeps adding recipes.
Ready to ship faster?
Tell us what you’re building. We’ll come back with a quote, lead time, and a reference machine to look at — not a sales pitch.
Control Block: $14,985 $9,989 · Standard lead time: 4 weeks
