HMI Hub
Unlock Your Offer: $458.00
Configuration costs: -
The Autoblocks HMI Hub is a versatile, plug-and-play solution designed for users who prefer to utilize their own hardware, offering seamless compatibility with external monitors and peripherals. The HMI Hub provides full Autoblocks functionality while allowing operators to customize their control setup. Preloaded with Autoblocks’ custom HMI software, it ensures smooth integration and exceptional control over your automation systems.
The HMI Hub is ideal for machine builders and integrators who prefer to customize their hardware setup while retaining the powerful control and monitoring features of the Autoblocks platform. It is perfect for environments that require a high degree of flexibility in choosing peripheral devices and monitor configurations.
Conclusion
The Autoblocks HMI Hub provides flexibility and ease of use for those who prefer custom hardware setups. With support for a wide range of monitor sizes and USB peripherals, the HMI Hub offers a powerful and adaptable solution for controlling any industrial automation system, all while retaining the core Autoblocks functionality.
Looking for an integrated solution with a durable touchscreen?
Check out our Autoblocks Smart HMI/Teach Pendant for a rugged, all-in-one control interface designed for industrial environments.
Product Description
Key Features:
• Preloaded with Autoblocks Custom HMI Software: The HMI Hub comes fully pre-configured with AutoCode or TurnCode, tailored to your system’s needs, for immediate use.
• Monitor Compatibility: The HMI Hub supports monitors with resolutions of 1280×800 (~10″) and 1920×1080 (~15″), ensuring distortion-free visuals and optimal display performance.
• USB Mouse/Keyboard Support: The Hub works with any standard USB mouse or keyboard, providing greater flexibility for operators who prefer manual input devices.
• Plug-and-Play Setup: Easily connects to any touchscreen monitor via standard HDMI and USB cables, making installation quick and hassle-free.
• Single PoE Connection: Power and data are delivered through a single PoE connection, reducing cable clutter and simplifying installation.
USB Ports for File Management: Built-in USB ports make file management, firmware updates, and data retrieval fast and easy, adding to the system’s flexibility.
HMI Hub Specifications
Core Platform:
Processor: Quad-core 64-bit ARM architecture for high-performance operations
Memory: 8GB RAM (standard configuration for handling industrial applications)
Storage: 128GB preinstalled storage with Autoblocks HMI software preloaded for seamless operation
Connectivity:

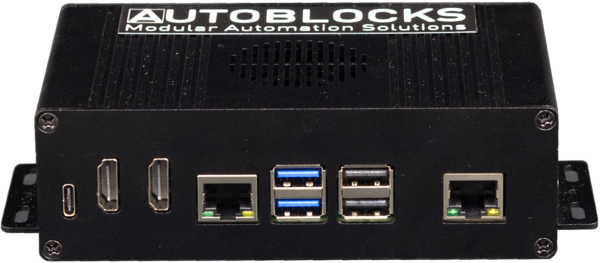

Ethernet Ports:
2x Gigabit Ethernet Ports (1 onboard and 1 additional port via expansion)
HDMI:
2x Full-sized HDMI Ports, supporting up to dual 4K displays @ 60Hz
USB Ports:
2x USB 3.0 Ports (SuperSpeed)
2x USB 2.0 Ports for peripherals and connectivity
Power Supply:
PoE (Power Over Ethernet): Single PoE cable (from the AutoBlock Control Block) supplies power and communication, eliminating the need for additional power adapters.
Preloaded Software:
AutoBlock HMI Software: Preinstalled on the 128GB storage, ready for plug-and-play integration with the Control Block system.
Cooling:
Enclosure: Machined aluminum with passive cooling fins and integrated fan for active cooling, ensuring reliable operation in industrial environments.
Mounting:

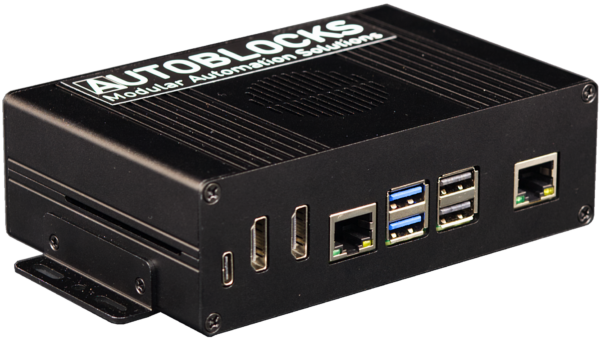

Form Factor: Compact and rugged enclosure with mounting brackets for easy integration into various environments.
Build Quality:
Material: Aluminum enclosure designed for industrial use, providing robustness and shielding for EMI protection.
Dimensions:
Dimensions: 138mm x 91mm x 43mm
Environmental Specifications:
Operating Temperature: -10°C to 50°C
Storage Temperature: -20°C to 70°C
Humidity: 10% to 90% non-condensing
Additional Features:
Dual HDMI Outputs: Capable of driving two independent 4K displays, ideal for visualization and monitoring.
Single Cable Design: Power and communication are combined into one PoE cable, reducing clutter and simplifying installation.
